Isolated Voltage Probe RIGOL Technologies-Products-Probemart

Probemart.com | Probes, current sensors & calibration sources for pulsed-power testing

Bookmark

Home > Probe Selector

Function:

All

Voltage

Voltage

Current

Current

Thermal

Thermal

Optical

Optical

Magnetic

Magnetic

Acoustic

Acoustic

Product Type:

All Voltage Probe Isolated Voltage Probe Current Probe Isolated Current Probe Standard Temperature Sensor Isolated Temperature Sensor Magnetic Field Sensor Optical Sensor Acoustic Sensor Probe Calibration System Integrated Test System Fixtures & Accessories

Optically Isolated Voltage Probe Differential Probe High-Voltage Differential Probe High-Frequency Low-Voltage Differential Probe Optically Isolated UHV Test Module Fluxgate Voltage Sensor - Ultra-High Precision

Brand:

All

More Brands

B C D E F G H I J K L M N O P R S T U V Y Z

RIGOL PIA1100 Optically Isolated Voltage Probe 1GHz 85kVpk RIGOL PIA1100 Optically Isolated Voltage Probe 1GHz 85kVpk Brand: RIGOL Technologies Origin: China PIA1100 是 RIGOL PIA1000 系列带宽最高的 1GHz 光纤光隔离电压探头，共模电压 85kVpk，上升时间 ≤450ps。信号经电光转换后由光纤传输，被测端与示波器端电气完全隔离；DC 共模抑制比 1… Brochure Manual Details
RIGOL PIA1050 Optically Isolated Voltage Probe 500MHz 85kVpk RIGOL PIA1050 Optically Isolated Voltage Probe 500MHz 85kVpk Brand: RIGOL Technologies Origin: China PIA1050 是 RIGOL PIA1000 系列 500MHz 光纤光隔离电压探头，共模电压 85kVpk，上升时间 ≤700ps。信号经电光转换后由光纤传输，被测端与示波器端电气完全隔离；DC 共模抑制比 180d… Brochure Manual Details
RIGOL PIA1020 Optically Isolated Voltage Probe 200MHz 85kVpk RIGOL PIA1020 Optically Isolated Voltage Probe 200MHz 85kVpk Brand: RIGOL Technologies Origin: China PIA1020 是 RIGOL PIA1000 系列 200MHz 光纤光隔离电压探头，共模电压 85kVpk，上升时间 ≤1.75ns。信号经电光转换后由光纤传输，被测端与示波器端电气完全隔离；DC 共模抑制比 180… Brochure Manual Details
RIGOL PVA9160 Active Differential Probe 16GHz 26.9ps RIGOL PVA9160 Active Differential Probe 16GHz 26.9ps Brand: RIGOL Technologies Origin: China PVA9160 是 RIGOL PVA9000 系列带宽最高的 16GHz 有源差分探头，上升时间 26.9ps（10%~90%），输入电容低至 125fF（差分）。可选 PVA9-DS01 焊接式或 PVA9-DB01… Brochure Manual Details

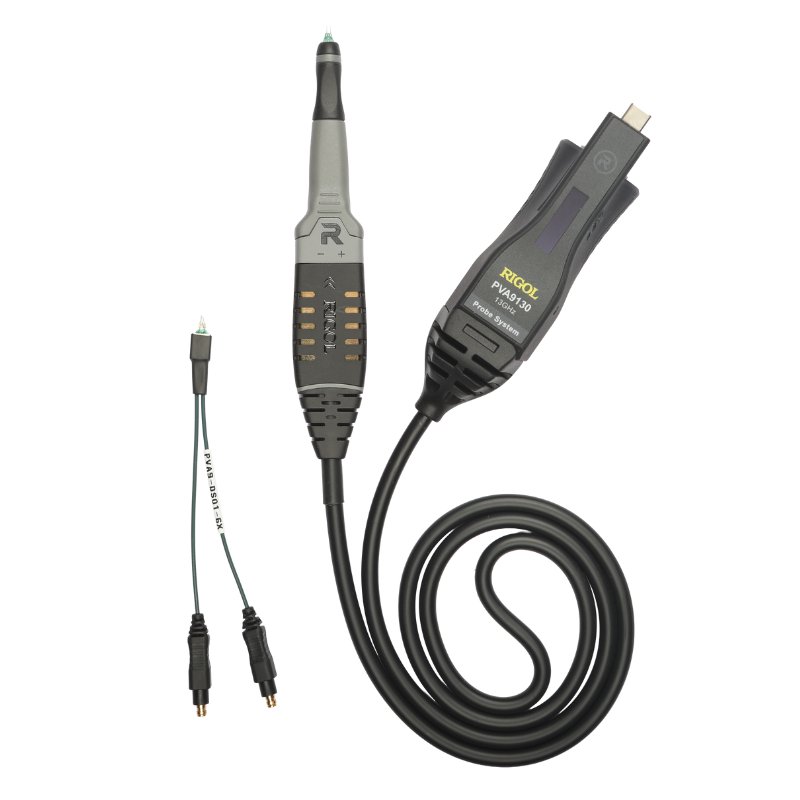

RIGOL PVA9130 Active Differential Probe 13GHz 26.9ps RIGOL PVA9130 Active Differential Probe 13GHz 26.9ps Brand: RIGOL Technologies Origin: China PVA9130 是 RIGOL PVA9000 系列 13GHz 有源差分探头，上升时间 26.9ps（10%~90%），输入电容低至 125fF（差分）。可选 PVA9-DS01 焊接式或 PVA9-DB01 手持式探… Brochure Manual Details
RIGOL PVA9100 Active Differential Probe 10GHz 26.9ps RIGOL PVA9100 Active Differential Probe 10GHz 26.9ps Brand: RIGOL Technologies Origin: China PVA9100 是 RIGOL PVA9000 系列 10GHz 有源差分探头，上升时间 26.9ps（10%~90%），输入电容低至 125fF（差分）。可选 PVA9-DS01 焊接式或 PVA9-DB01 手持式探… Brochure Manual Details

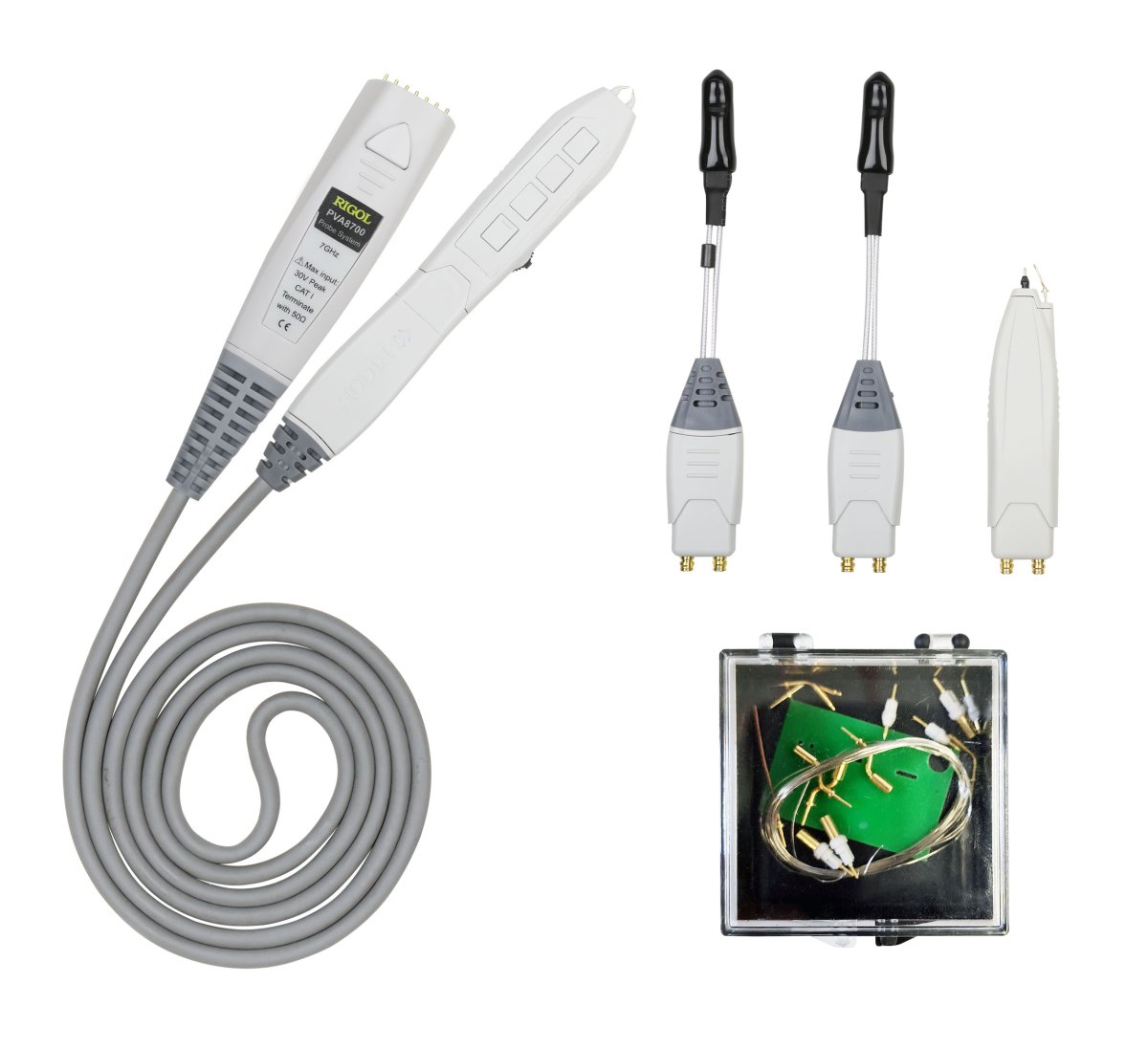

RIGOL PVA8700 Active Differential Probe 7GHz 10:1 30V RIGOL PVA8700 Active Differential Probe 7GHz 10:1 30V Brand: RIGOL Technologies Origin: China PVA8700 是 RIGOL 7GHz 有源差分探头，衰减比 10:1±2%，上升时间 70ps（典型值）。输入动态范围 ±2V，输入阻抗 50kΩ±2%（差分）/ 25kΩ±4%（单端），输入电容小于 0.6pF，共… Brochure Manual Details
RIGOL PVA8350 Active Differential Probe 3.5GHz 10:1 30V RIGOL PVA8350 Active Differential Probe 3.5GHz 10:1 30V Brand: RIGOL Technologies Origin: China PVA8350 是 RIGOL 3.5GHz 有源差分探头，衰减比 10:1±2%，上升时间 110ps（典型值）。输入动态范围 ±2V，输入阻抗 50kΩ±2%（差分）/ 25kΩ±4%（单端），输入电容小于 0.6p… Brochure Manual Details
RIGOL PVA8100 Active Differential Probe 1GHz +/-60V 50:1 RIGOL PVA8100 Active Differential Probe 1GHz +/-60V 50:1 Brand: RIGOL Technologies Origin: China PVA8100 是 PVA8050 的 1GHz 版本有源差分探头，衰减比 50:1，最大差动电压 ±60V（DC+Pk）。输入阻抗 200kΩ/400kΩ、输入电容 1pF，50Ω BNC 输出可兼容任意 50Ω 输入… Brochure Manual Details
RIGOL PVA8050 Active Differential Probe 500MHz +/-60V 50:1 RIGOL PVA8050 Active Differential Probe 500MHz +/-60V 50:1 Brand: RIGOL Technologies Origin: China PVA8050 是 RIGOL 有源差分探头，带宽 500MHz，衰减比 50:1，最大差动电压 ±60V（DC+Pk）。输入阻抗 200kΩ/400kΩ、输入电容 1pF，50Ω BNC 输出可兼容任意 50Ω 输入示… Brochure Manual Details

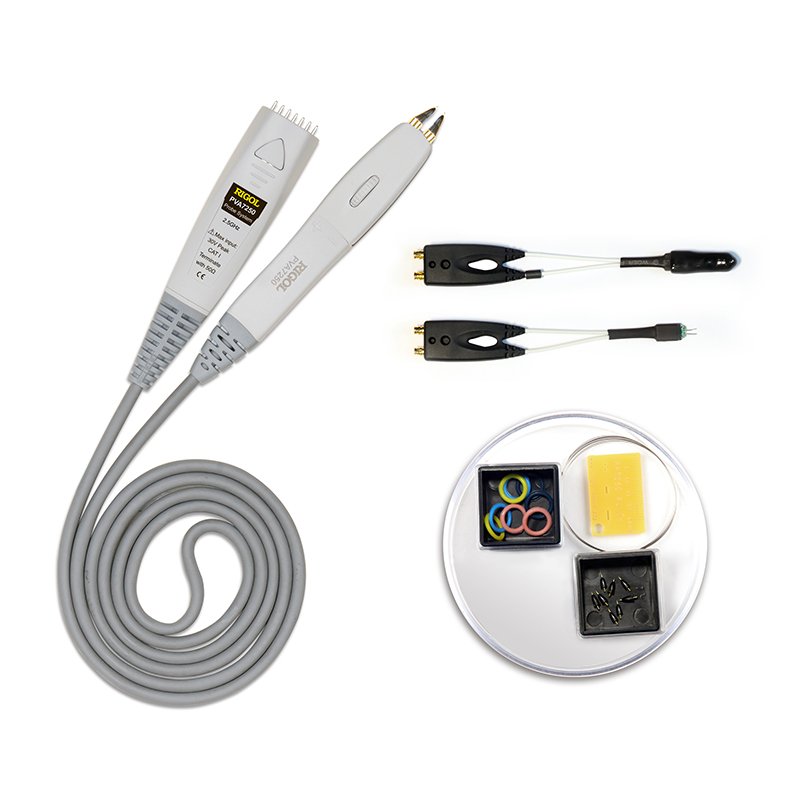

RIGOL PVA7250 Active Differential Probe 2.5GHz 30V CAT I RIGOL PVA7250 Active Differential Probe 2.5GHz 30V CAT I Brand: RIGOL Technologies Origin: China PVA7250 是 RIGOL 2.5GHz 有源差分探头，衰减比 10:1，最大输入 30V 峰值 CAT I。有源前端置于探头头部，输入电容远低于无源探头，支持差分与单端两种取信号方式，搭配 DS70000 / DS… Brochure Manual Details

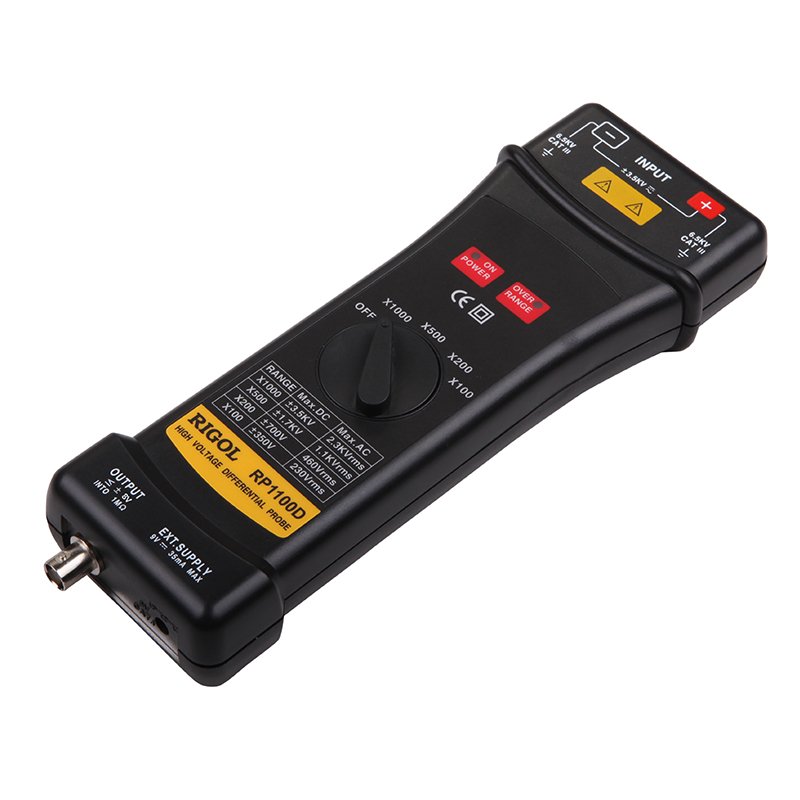

RIGOL RP1100D High-Voltage Differential Probe (100 MHz) RIGOL RP1100D High-Voltage Differential Probe (100 MHz) Brand: RIGOL Technologies Origin: China RP1100D 是 RIGOL 高压差分探头（RP1000D 系列），带宽 100 MHz，衰减 X100/X200/X500/X1000 四档，精度 ±2%。最大差分电压 7000V（DC+AC 峰峰值）或 2300V… Brochure Manual Details

«

1
